Description
Product Description

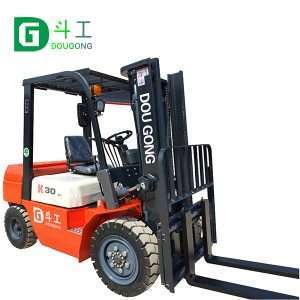

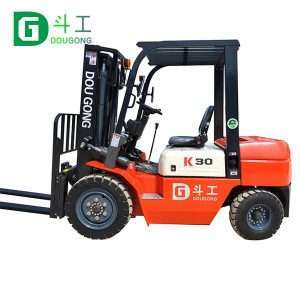

Select better forklift trucks at lower prices when you buy your next diesel forklift 3.5 ton direct from China.
- High pressure common rail environmental protection engine.
- Built-in noise isolating and sealing materials reduce vibration and noise effectively.
- 80 opening angle of engine hood makes maintenance easier.
- The engine hood is easy to open.
- The gas spring with automatic lock function ensures the safety during maintenance.
- The truck has lower vibration and noise.
All Dogon forklifts come with：
- Fork
- Traction pin
- Backward buzzer
- Neutral gear safety switch
- Overhead guard rain cover
- Overhead guard
- Air inletting device
- Durable tread tyres
- Widen fork arm carrier
Options:
- Driver’s cab
- Speedometer
- Fire extinguisher
- Solid tyre
- Rear working lamp
- Auxiliary pipeline
- Suspension seat
- Customized color
- Transmission oil temperature gauge
- Warm air blower
- High air exhausting device
- Tilt cylinder jacket
- Smart fleet management system
3.5 ton diesel forklift dimensions
| Model | CPC35 | CPCD35 |
| Power Type | Diesel | Diesel |
| Rated Capacity(kg) | 3500 | 3500 |
| Load Center(mm) | 500 | 500 |
| Driving Mode | Sit-on Type | Sit-on Type |
| Performance | ||
| Max Traveing Speeds(laden/unladen) | 19/19 km/h | 18/19 km/h |
| Lifting Speeds(laden/unladen) | 360/380 mm/s | 360/380 mm/s |
| Lowering Speeds(laden/unladen) | 350/400 mm/s | 350/400 mm/s |
| Max Draw-bar Pull(laden/unladen) | 18.1/13.4 kN | 19.6/16.2 kN |
| Max Gradeability(laden/unladen) | 15%/20% | 15%/20% |
| Size | ||
| Max Lifting Height(mm) | 3000 | 3000 |
| Mast Height, Lowered(mm) | 2180 | 2180 |
| Mast Height, Extended(mm) | 4250 | 4250 |
| Free Lift(mm) | 170 | 170 |
| Overall Height(overhead guard, mm) | 2095 | 2095 |
| Min. Ground Clearance(mm) | 1350 | 1350 |
| Seat to Overhead Guard(mm) | 1000 | 1000 |
| Traction Coupling Height(mm) | 310 | 310 |
| Backrest Height(from the fork face, mm) | 1222 | 1222 |
| Overall Length(with/without fork, mm) | 3750/2680 | 3750/2680 |
| Wheel base(mm) | 1700 | 1700 |
| Front Overhang(mm) | 480 | 480 |
| Rear Overhang(mm) | 510 | 510 |
| Overall Width(mm) | 1225 | 1225 |
| Tread(front/rear)(mm) | 1000/970 | 1000/970 |
| Distance Across Forks(max/min, mm) | 1060/250 | 1060/250 |
| Min. Turning Radius(external, mm) | 2420 | 2420 |
| Min. Turning Radius(internal, mm) | 200 | 200 |
| Min. Right Angle Aisle Width(mm) | 2400 | 2400 |
| Mast Tilt(deg) | 6/12 | 6/12 |
| Fork Size(mm) | 1070×125×50 | 1070×125×50 |
Available Attachment
- String rod
- Lifting hook
- Side shifter
- Paper roll clamp
- Rotating fork
- Cargo boom
- Lengthening fork
- Multipurpose drum clamp
- Rotating flat clamp
- Widen fork arm carrier
- Lengthening fork extension
- Load stabilizer
- Load push pull
- Tipping fork, tipping bucket
- Wide view free-lift mast(two-stage)
- Wide view free-lift mast(three-stage)
Product Advantages
-Great Reliability
-Simplified Serviceability
-Enhanced Productivity
About Dogon Forklift
Dogon (China) Group is a dedicated forklift manufacturer in China. Our company has more than 500 employees, including more than 100 professional technicians, and more than 50 senior and intermediate engineers. We can supply different classeds of forklifts.
Dogon fork lift trucks are very popular with its high performance, comfortable operation, excellent quality, and reliable working. Now our company mainly produces diesel counterweight forklifts, electric counterweight forklifts, non-road diesel engines, grass grabbers, loaders, agricultural machinery, etc. K series 3 ton forklift and 3.5 ton forklift are our star products. In aadition, the 3 ton electric forklift is also popular in the market.
All the forklift trucks can be supplied with necessary attachments for different material handling applications. Our company will continuously keep its advantages with strict QC systems. If you are interested in our products, feel free to contact our team, get more information and a free quotation timely.
