Description

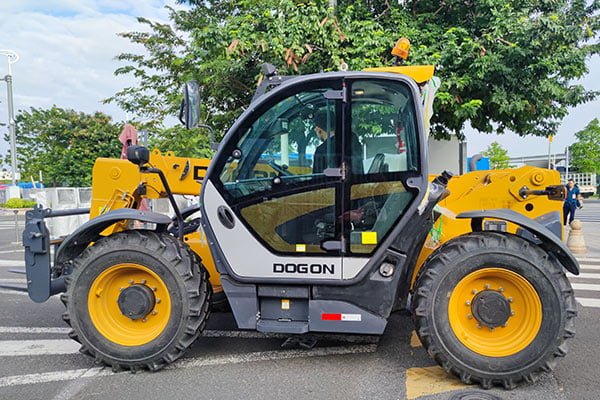

Telescopic handler forklift also know as telehandler, is a versatile lifting and handling machine commonly used in construction, agriculture, and other industries. The telescopic boom lift truck combines the functionalities of a forklift and a telescopic boom, offering enhanced reach and lifting capabilities.
Telescopic Handler Forklift Specifications

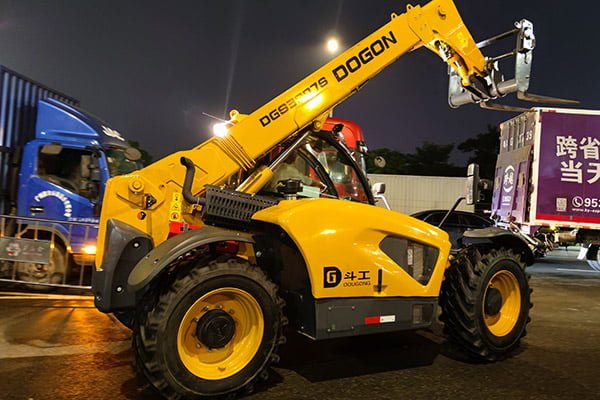

| Models | DGS3007S | |
| Measurements | ||
| Overall size | 4820×2220×2380 mm | |
| Maximum lifting height (to upper plane of fork) | 6950 mm | |
| Maximum forward reach | 3690 mm | |
| Wheelbase | 2850 mm | |
| Wheel tread | 1800 mm | |
| Cab width | 917 mm | |
| Minimum ground clearance | 400 mm | |
| Fork cross section | 45×1070mm | |
| Center distance of load | 500 mm | |
| Braking distance | ≤12.5 m | |
| Productivity | ||
| Rated load | 3000 kg | |
| Maximum lift height of the payload | 2000 kg | |
| Payload at maximum forward reac | 1250 kg | |
| Work device | Luffing time (rising) | ≤10 s |
| Luffing time (falling) | ≤8 s | |
| Second arm stretching-out time | ≤11.5 s | |
| Second arm retracting time | ≤8 s | |
| Fork arm carrier forward tiling time | ≤6.5 s | |
| Fork arm carrier backward tiling time | ≤6 s | |
| Telescopic arm luffing angle | （-3°～65°） | |
| Range of inclination angle of fork arm carrier (arm level) | （-12°～114°） | |
| Maximum traveling speed | 40 km/h | |
| Draw bar pull/ Break out force | 5500kg | |
| Minimum turning radius (outer side of tire) | ≤3600 mm | |
| Auxiliary hydraulic pressure | 220 bar | |
| Tires, standard size | 15.5-25-16pr | |
| Gradeability | 25° | |
| Maximum traction force | ≥55 kN | |
| Power | ||
| Power source | Diesel | |
| Electrical system voltage | 24V | |
| Engine | Model | BF4M2012-10T3R |
| Power | 72 KW | |
| Speed | 2200r/min | |
| Battery | 750 CCA 0°F (-18°C) | |
| Hydraulic tank capacity | 125 L | |
| Hydraulic system capacity (w/tank) | 255 L | |
| Fuel tank capacity | 80 L | |
| Weight | 7500 kg | |
Telehandler Forklift Features
- With four-wheel-drive and rigid suspension.
- Hydraulic mechanical drive, hydraulic power steering, and hydraulic brake, rear-wheel steering.
- Applicable to the unstuffing and casing of palletized goods in containers, as well as handling, stacking, and short-distance transportation of a variety of packaged goods.
- Suitable for many different working environments, is an ideal equipment for loading and unloading, lifting, and transportation in mining, factories, architecture, building materials, docks, municipal engineering industries, and more.
Dogon telescopic boom forklift provides powerful lift capacities and working heights. Perfect for any rugged job site with the power of diesel engines & 4×4 capabilities making them perfect lifting applications for materials. In additional, our factory can also supplies diesel forklift, electric forklift, scissor lift truck, articulating boom lift etc.. Various fork sizes also available upon request.
