Description

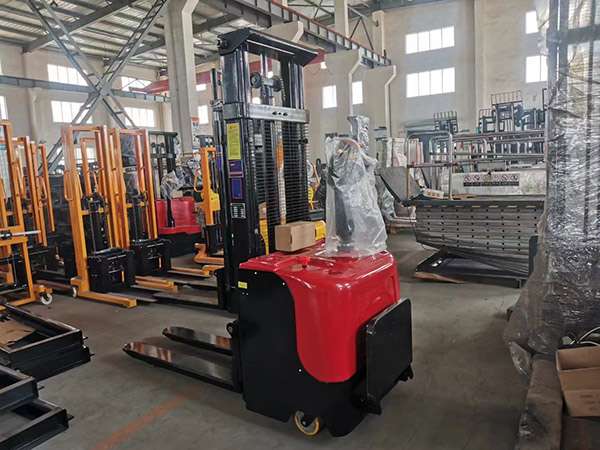

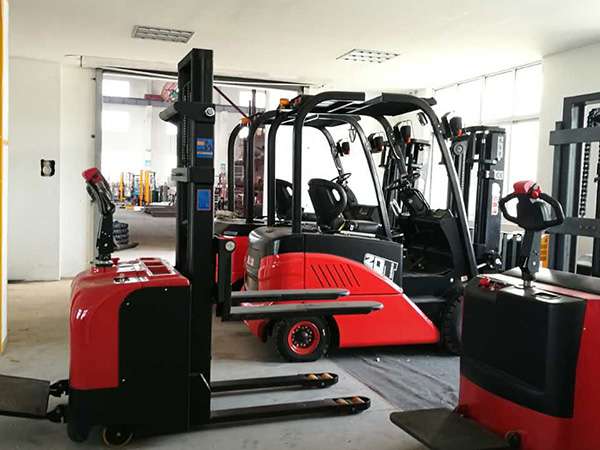

China full electric stacker 2 ton for sale is a ideal choice for the medium stacking operations. This 2 ton electric walkie stacker is with compacted chassis, lightweight, smaller turning radius which can be more flexible and useful in material handling and logistic transportation.
Electric stacker dimensions
| Product Model | CDD 20Y | |
| Drive Type | Electric | |
| Driving Style | Stand and Drive Type | |
| Load Capacity | kg | 2000 |
| Load Center | mm | 500 |
| Wheelbase | mm | 1383 |
| Self Weight(with battery) | kg | 680 |
| Tyre | polyurethane wheels | |
| Drive Wheel size(diameter*width) | mm | φ250*80 |
| Front Wheel size(diameter*width) | mm | φ80*70 |
| Balance Wheel size(diameter*width) | mm | 125*40 |
| Wheel number(X-Driven) | 1x=2/4 | |
| Front Wheelbase | mm | 500 |
| Rear Wheelbase | 616 | |
| Overall Height(Min height) | mm | 2080/1580/1830/2080/2330 |
| Overall Height(Lift height) | mm | 2080/2560/3060/3560/4060 |
| Lift Height | mm | 1600/2000/2500/3000/3500 |
| Min Height | mm | ≦90 |
| Operation Handle Height above Ground(max/min) | mm | 1520/1050 |
| Overall Length(Stand up/down) | mm | 2030/2419 |
| Overall Width | mm | 850 |
| Fork Size | mm | 170/55/1150 |
| Outer Width of Fork | mm | 680 |
| Min Height | mm | 30 |
| Aisel Width,1000*1200pallet lengthwise stand up/down | mm | 2879 |
| Turning Radius(Pedal up) | mm | 1619 |
| Travel Speed(empty/no load) | km/h | 4/5 |
| Max climbing ability(no load) | mm/s | 100 |
| Max climbing ability(empty load) | mm/s | 50 |
| Max climbing ability(empty/no load) | % | 3/5 |
| Service Brake | Electromagnetic brake | |
| Drive Motor Rating | kw | DC1.5 |
| Lifting Motor Rating | kw | DC2.2 |
| Battery Voltage/Rated Capacity | a/ah | 2*12v/120ah |
Product Features
1. Electric walking, electric lifting.
2. The mast is made of imported steel or custom-made manganese steel, so that the body will never be deformed and durable.
3. The electronic control system of the original joint venture brand is sensitive in response and safe in operation.
4. The drive assembly imported from Italy is powerful.
5. Combination of large-capacity traction battery makes the continuous working time longer.
6. The intelligent charger guarantees the service life of the battery.
Applications
This electric walkie reach stackers are widely used in factory workshops, warehouses, distribution centers and distribution centers, ports, stations, airports, freight yards, etc., and can enter cabins, carriages and containers for loading, unloading and handling of palletized goods. It is an essential equipment for pallet transportation and container transportation.
