Description

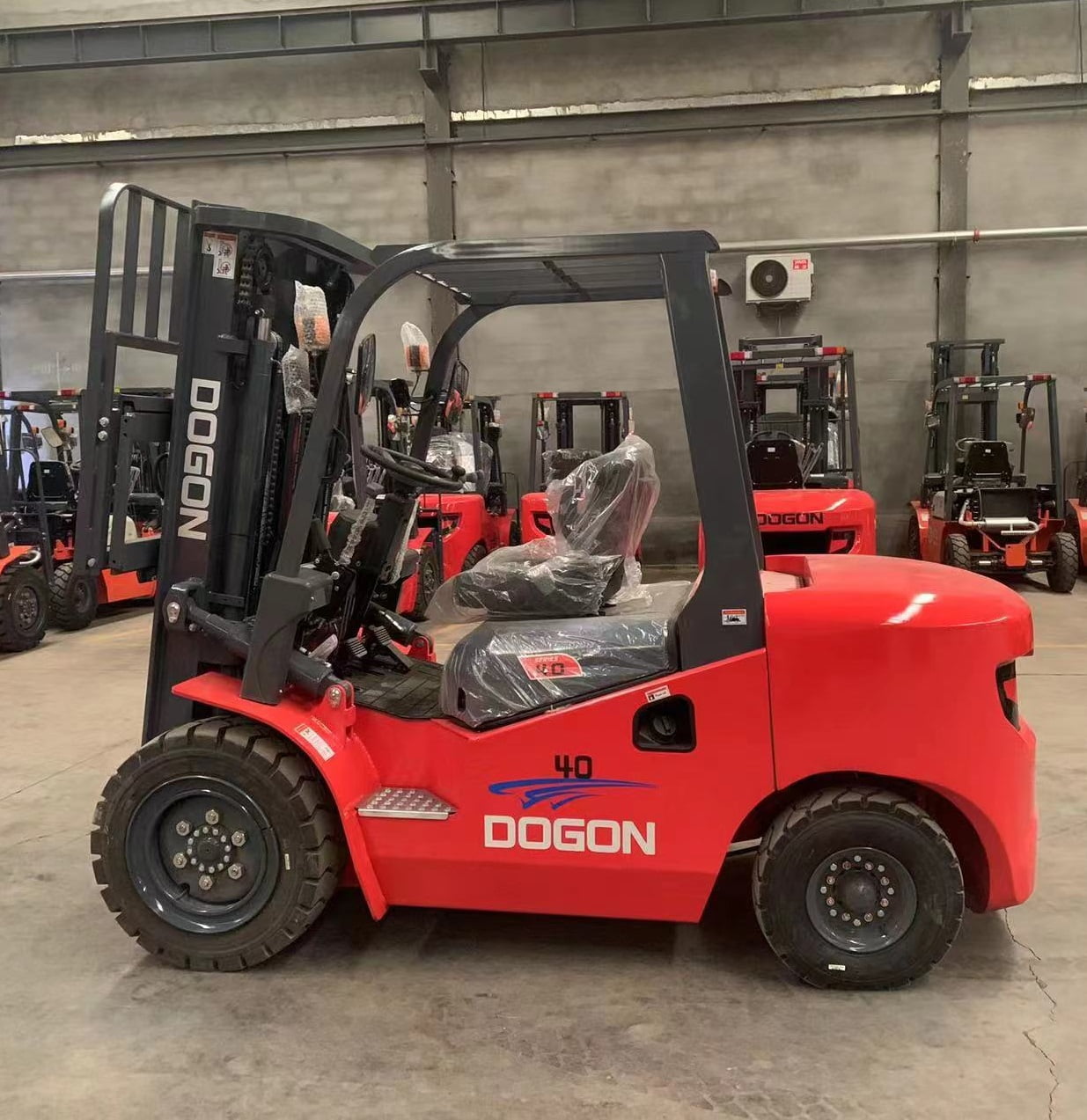

Dogon K series rough terrain forklift 4tons(8800lbs) for sale come available with 2WD and 4WD. Whether indoors or outdoors, these nimble forklifts can get the job done. Our goal is to provide the best value for money forklifts in the industry, which is why we make sure our lift trucks are carefully crafted using the best components.
88000lb rough terrain forklift specification
| Model | CPC40 | CPCD40 | |
| Power Type | Diesel | Diesel | |
| Rated Capacity | (kg) | 4000 | 4000 |
| Load Center | (mm) | 500 | 500 |
| Driving Mode | Sit down | Sit down | |
| Size | |||
| Max Lifting Height(mm) | H | 3000 | 3000 |
| Mast Height, Lowered(mm) | H1 | 2150 | 2150 |
| Mast Height, Extended(mm) | H2 | 4220 | 4220 |
| Free Lift(mm) | H3 | 30 | 30 |
| Overall Height(overhead guard, mm) | H4 | 3003 | 3003 |
| Min. Ground Clearance(mm) | H5 | 148 | 148 |
| Seat to Overhead Guard(mm) | H6 | 1000 | 1000 |
| Traction Coupling Height(mm) | H9 | 323 | 323 |
| Backrest Height(from the fork face, mm) | H13 | 1215 | 1215 |
| Overall Length(with/without fork, mm) | W1 | 4063/2843 | 4063/2843 |
| Wheel base(mm) | L4 | 1850 | 1850 |
| Front Overhang(mm) | L2 | 460 | 460 |
| Rear Overhang(mm) | L3 | 533 | 533 |
| Overall Width(mm) | W1 | 1290 | 1290 |
| Tread(front/rear)(mm) | W3/W2 | 1000/970 | 1000/970 |
| Distance Across Forks(max/min, mm) | W5 | 1060/244 | 1060/244 |
| Min. Turning Radius(external, mm) | r | 2550 | 2550 |
| Mast Tilt(deg) | a/b | 6/12 | 6/12 |
| Fork Size(mm) | L4 | 50×125×1220 | 50×125×1220 |
| Performance | |||
| Max Traveling Speeds(laden/unladen) | km/h | 18/19 | 19/19 |
| Lifting Speeds(laden/unladen) | mm/s | 440/480 | 440/480 |
| Lowering Speeds(laden/unladen) | mm/s | 440/430 | 440/430 |
| Max Draw-bar Pull(laden/unladen) | kN | 18.1/13.4 | 19.6/16.2 |
| Max Gradeability(laden/unladen) | % | 15/20 | 15/20 |
Available Attachment
- Lifting hook
- String rod
- Side shifter
- Paper roll clamp
- Rotating fork
- Cargo boom
- Lengthening fork
- Multipurpose drum clamp
- Rotating flat clamp
- Widen fork arm carrier
- Lengthening fork extension
- Load stabilizer
- Load push pull
- Tipping fork, tipping bucket
- Wide view free-lift mast(two-stage)
- Wide view free-lift mast(three-stage)
Features of Dogon 4WD rough terrain forklift
- Great Reliability
- Simplified Serviceability
- Enhanced Productivity
- Environment-friendly design
- Easy maintenance
- Wide view mast
Why choose Dogon Forklift?
We specialize in supplying a wide range of material handling equipment, including diesel forklift, electric forklift, pallet jacks, pallet stackers, telehandler, scissor lift platform, etc..
We export all kinds of material handling equipment and offer comprehensive pre and after-sale services. And we have established a good business relationship with many customers worldwide.
