Description

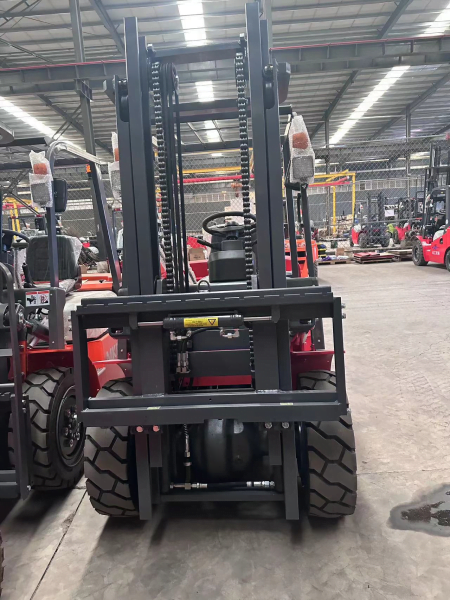

Dogon supplies diesel forklift with side shifter 3ton for sale, with high quality and perfect performance.
Diesel Forklift Truck Specification
| Model | CPC30 | CPCD30 | |
| Power Type | Diesel | Diesel | |
| Rated Capacity | (kg) | 3000 | 3000 |
| Load Center | (mm) | 500 | 500 |
| Driving Mode | Sit-on Type | Sit-on Type | |
| Performance | |||
| Max Traveling Speeds(laden/unladen) | km/h | 18/19 | 18/19 |
| Lifting Speeds(laden/unladen) | mm/s | 440/480 | 440/480 |
| Lowering Speeds(laden/unladen) | mm/s | 440/430 | 440/430 |
| Max Draw-bar Pull(laden/unladen) | kN | 17.5/13.4 | 19.5/15.5 |
| Max Gradeability(laden/unladen) | % | 15/20 | 15/20 |
| Size | |||
| Max Lifting Height(mm) | H | 3000 | 3000 |
| Mast Height, Lowered(mm) | H1 | 2070 | 2070 |
| Mast Height, Extended(mm) | H2 | 4220 | 4220 |
| Free Lift(mm) | H3 | 30 | 30 |
| Overall Height(overhead guard, mm) | H4 | 2090 | 2090 |
| Min. Ground Clearance(mm) | H5 | 135 | 135 |
| Seat to Overhead Guard(mm) | H6 | 1000 | 1000 |
| Traction Coupling Height(mm) | H9 | 310 | 310 |
| Backrest Height(from the fork face, mm) | H13 | 1215 | 1215 |
| Overall Length(with/without fork, mm) | W1 | 3913/2693 | 3913/2693 |
| Wheel base(mm) | L4 | 1700 | 1700 |
| Front Overhang(mm) | L2 | 460 | 460 |
| Rear Overhang(mm) | L3 | 533 | 533 |
| Overall Width(mm) | W1 | 1225 | 1225 |
| Tread(front/rear)(mm) | W3/W2 | 1000/970 | 1000/970 |
| Distance Across Forks(max/min, mm) | W5 | 1060/244 | 1060/244 |
| Min. Turning Radius(external, mm) | r | 2390 | 2390 |
| Mast Tilt | a/b | 6°/12° | 6°/12° |
| Fork Size(mm) | L4 | 1220×122×45 | 1220×122×45 |

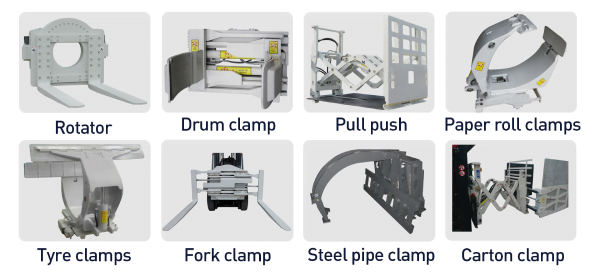

Optional Forklift Attachments
Product Features
- High pressure common rail environmentally friendly engine
- China QuanChai or XinChai, or Japanese imported engine available
- Soundproofing and sealing materials reduce vibration and noise.
- Easy maintenance thanks to 80-degree hood opening angle, and easy to open the hood.
- Air springs with automatic locking function ensure safety during maintenance.
- 2 stage mast/3 stage mast, available in various lifting capacities: 3m, 3.5m, 4m, 4.5m, 5m, 5.5m, 6m
- Options: Mechanical or Automatic
- Can be fitted with a variety of fork attachments
Why choose Dogon Forklift?
* Free Quotes and Quick Response
* Source factory shipment, Affordable Prices
* Available In-Stock, and Fast delivery
* Rich experience in manufacturing and exporting
* Participated in many well-known exhibitions in the industry
* Has own R&D team
* With ISO & CE certificates, quality guaranteed
* OEM and ODM service available
Dogon Group is an enterprise specializing in the research, development and production of material handling equipment with rich experience. The main products include: diesel forklift, electric forklift, electric pallet stacker, telehandler forklift, articulating boom lift, scissor lift platforms, etc..
