Description

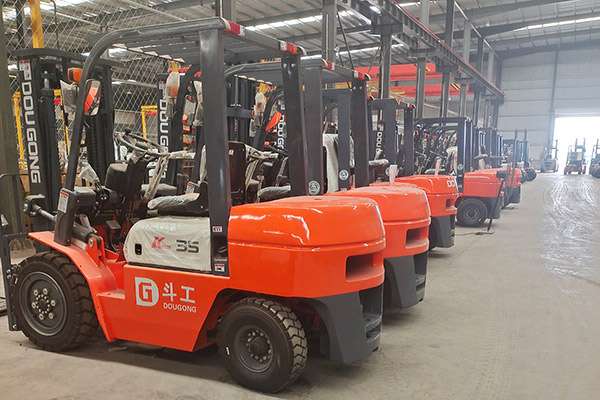

3.5 ton Diesel Sit Down Forklift Description
- High pressure common rail environmental protection engine.
- Built-in noise isolating and sealing materials reduce vibration and noise effectively.
- 80 opening angle of engine hood makes maintenance easier.
- The engine hood is easy to open.
- The gas spring with automatic lock function ensures the safety during maintenance.
- Lower vibration and noise.
3.5 Ton diesel forklift dimension
| Model | CPC35 | CPCD35 |
| Power Type | Diesel | Diesel |
| Rated Capacity(kg) | 3500 | 3500 |
| Load Center(mm) | 500 | 500 |
| Driving Mode | Sit-on Type | Sit-on Type |
| Performance | ||
| Max Traveing Speeds(laden/unladen) | 18/19 km/h | 18/19 km/h |
| Lifting Speeds(laden/unladen) | 440/480 mm/s | 440/480 mm/s |
| Lowering Speeds(laden/unladen) | 440/430 mm/s | 440/430 mm/s |
| Max Draw-bar Pull(laden/unladen) | 18.1/13.4 kN | 19.6/16.2 kN |
| Max Gradeability(laden/unladen) | 15%/20% | 15%/20% |
| Size | ||
| Max Lifting Height(mm) | 3000 | 3000 |
| Mast Height, Lowered(mm) | 2070 | 2070 |
| Mast Height, Extended(mm) | 4220 | 4220 |
| Free Lift(mm) | 30 | 30 |
| Overall Height(overhead guard, mm) | 2090 | 2090 |
| Min. Ground Clearance(mm) | 135 | 135 |
| Seat to Overhead Guard(mm) | 1000 | 1000 |
| Traction Coupling Height(mm) | 310 | 310 |
| Backrest Height(from the fork face, mm) | 1222 | 1222 |
| Overall Length(with/without fork, mm) | 3913/2693 | 3913/2693 |
| Wheel base(mm) | 1700 | 1700 |
| Front Overhang(mm) | 460 | 460 |
| Rear Overhang(mm) | 533 | 533 |
| Overall Width(mm) | 1225 | 1225 |
| Tread(front/rear)(mm) | 1000/970 | 1000/970 |
| Distance Across Forks(max/min, mm) | 1060/244 | 1060/244 |
| Min. Turning Radius(external, mm) | 2390 | 2390 |
| Mast Tilt(deg) | 6/12 | 6/12 |
| Fork Size(mm) | 1220×122×45 | 1220×122×45 |
Standard configuration for Forklift
- Fork
- Traction pin
- Backward buzzer
- Neutral gear safety switch
- Overhead guard rain cover
- Overhead guard
- Air inletting device
- Durable tread tyres
- Widen fork arm carrier
Optional Configuration for Forklift
- Driver’s cab
- Speedometer
- Fire extinguisher
- Solid tyre
- Rear working lamp
- Auxiliary pipeline
- Suspension seat
- Custom color
- Transmission oil temperature gauge
- Warm air blower
- High air exhausting device
- Tilt cylinder jacket
- Smart fleet management system
Product features
- 20% reduction in vibration
- 3dB noise reduction
- 45% more workspace
- operator’s field of vision increased by 20%
- 20% increase in work efficiency
- Loading capacity increased by more than 5%
- Stability increased by 5%
- Reliability increased by 40%
- Opening angle of the hood increased to 80°
Available Attachment
- String rod
- Lifting hook
- Side shifter
- Paper roll clamp
- Rotating fork
- Cargo boom
- Lengthening fork
- Multipurpose drum clamp
- Rotating flat clamp
- Widen fork arm carrier
- Lengthening fork extension
- Load stabilizer
- Load push pull
- Tipping fork, tipping bucket
- Wide view free-lift mast(two-stage/three-stage)
Why choose Dogon Forklift
- Professional R&D team
- with ISO & CE certificate, quality guaranteed
- OEM, ODM and customization services
- Free Quotes
- Fast delivery
- Available In-Stock
- Affordable Prices
- Have many years of production and export trade experience
- Participated in many well-known exhibitions in the industry
About Dogon Forklift
Dogon (China) Group is a leading forklift equipment manufacturer in China with almost 20 years experience. Our company has more than 500 employees, including more than 100 professional technicians, and more than 50 senior and intermediate engineers. Our mainly products include diesel forklifts, electric forklift truck, grass grabbers, loaders, non-road diesel engines, agricultural machinery, etc.
Dogon forklifts are very popular with high performance, comfortable operation, excellent quality, and reliable working. Our company will continuously keep product advantages with strict QC systems.
3ton forklift and 3.5 ton diesel sit down forklift trucks are our star products. And 3 ton electric forklift also very popular in the market. All the forklift trucks are supplied with necessary attachments for different material handling applications. Abundant configuration and spare parts are available.
Our forklifts have been exported to many countries and regions, such as India, Thailand, the Philippines, Malaysia, and so on. If you are interested in our products, feel free to contact our team, get more details and a free quotation.
