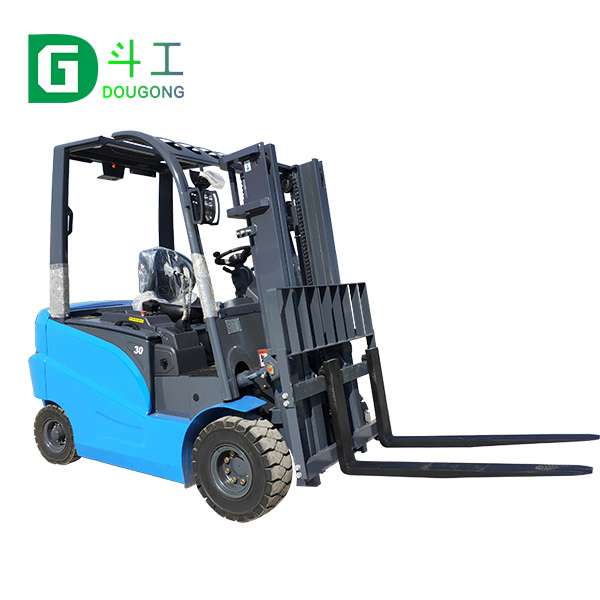

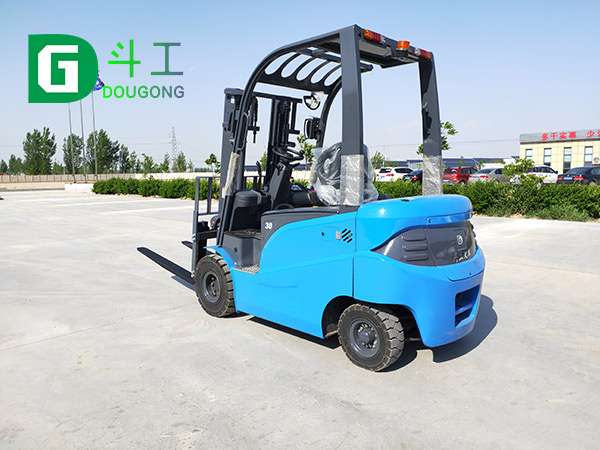

Lithium battery powered forklift have become an popular forklift type. The lithium-ion battery forklift 3 ton is an very cost-effective choice. Unlike lead-acid batteries, lithium-ion batteries provide maximum power at all times, regardless of how much charge is left. When the lead-acid batteries have less power, they will affect speed and lift capacity.
3 ton lithium forklift dimension
|Rated Capacity (kg)||3000|
|Load center distance (mm)||500|
|Max. Lifting height (mm)||3000|
|Free lifting height (mm)||145|
|Mast tilt angle front/rear||6°/12°|
|Length (fork exclude, mm)||2650|
|Mast height (mm)||2020|
|Overhead guard height (mm)||2205|
|Min. Under clearance (mm)||115|
|Wheel base (mm)||1680|
|Min. Turning radius (mm)||2380|
|Travelling speed loaded/unloaded (km/h)||15/16.5|
|Lifting speed loaded/unloaded (mm/s)||330/450|
|Gradeability loaded/unloaded (%)||15|
Motor & Battery
|Motor||Drive motor power (KW)||16.5|
|Pump motor power (KW)||13.5|
|Lithium battery capacity (Ah)||450|
Note: Performance can be customized according to customer needs.
- Complete vehicle is compact and simple in appearance, and the exposed parts are made of environmentally friendly overall stamped metal materials;
- Adopt excellent electric motor control, strong power and simple structure, and reduce energy consumption by 20%;
- Select lithium iron phosphate battery, each unit has a BMS management and protection device to ensure the use of lithium battery, high voltage design, and increase power utilization efficiency;
- Intelligent sensing of descending buffer, when the fork is 100-60mm away from the ground, the descending speed will automatically slow down, so that the goods and pallets do not hit the ground, and the goods and the ground are better protected;
- Regenerative braking (when the forklift stops, decelerates, reverses direction and goes downhill, the drive motor becomes a generator, and the battery is reversely charged through the controller to save energy);
- The new large-screen LED instrument has good visibility, intuitive reading and a friendly human-computer interaction interface;
- According to the ergonomically designed steering wheel, the inclination angle can be adjusted up and down, the seat can be adjusted forward and backward by 150mm at the same time, and the operator can choose a comfortable driving position.
- The optional lithium battery is guaranteed for 5 years or 10,000 hours.
- Optional: The battery is removed from the side. It is not necessary to lift the battery from the gap at the top of the roof guard, which can better replace the battery. It is suitable for heavy-duty, continuous work and other high-intensity conditions.
- Only trained and licensed drivers can drive this forklift.
- Check all controls and alarms before driving. If damaged or defective, it must be repaired before operation.
- When start to drive the 3-ton electric forklift, ensured the cargoes are lowered and the mast frame is inclined backward.
- Stable starting, steering, driving, braking, and parking are essential. When driving the electric counterbalance forklift on wet or slippery roads, we need to slow down when turning.
- Material handling should not exceed specified loads. The forks should be inserted under the cargo so that the cargo is evenly distributed on the forks. The use of a single fork to pick goods is prohibited.
About Dogon Forklift
Dogon (China) Group is a leading forklift truck manufacturer and supplier in China. Dogon Forklifts are designed and manufactured from the ground up with operator safety, comfort, productivity, and efficiency in mind. Select the right 3ton forklift solution for your business.
Our factory can produce diesel forklift and electric forklift. Diesel 6000 lb and 7000 lb forklift trucks are our popular forklift models. In addition, 3 ton electric forklift is also one of the best selling products.
Dofon forklift trucks is with superior quality and good prices. Lift Your Business To Success with Dogon Forklift. For more details and product price list, contact our team for a free quotation today.
