Description

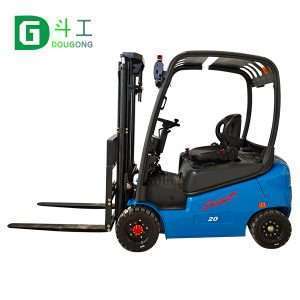

Brand new 1 ton electric forklift for sale! This 1 ton forklift is light-duty and easy to use. Dogon group produces and supplies high quality diesel & electric forklift trucks with good performance and professional service. Forklifts are also known as fork lift trucks, our forklift products range from small to heavy-duty models and provide ample strength, lift height, versatility and the performance features needed for most applications.
1 ton Electric Forklift Specifications/Dimensions
Model | CPD10 |
Max. Lifting Height | 3000 mm |
Rated Capacity | 1000 kg |
Free Lifting Height | 80mm |
Length (fork excluded) | 1640 mm |
Width | 800 mm |
Load Center Distance | 400 mm |
Power Mode | Storage Battery |
Tyre Type | Solid |
Mast Tilt Angle Front/rear | 6-12° |
Mast Height | 2050 mm |
Overhead Guard Height | 1900 mm |
Min. Under Clearance | 90 mm |
Wheel Base | 1020 mm |
Min. Turning Radius | 1800 mm |
Travelling Speed Loaded/Unloaded | 11/12 km/h |
Lifting Speed Loaded/Unloaded | 220/250 mm/s |
Gradeability Loaded/Unloaded | 10% |
Battery & Motor for the electric forklift trucks
Battery | Voltage | 48V |
Lithium battery capacity | 120 Ah | |
Lead-acid battery capacity | 160Ah | |
Motor | Drive motor power | 3 kw |
Pump motor power | 3 kw |
Standard configuration
- Backward buzzer
- Traction pin Fork
- Neutral gear safety switch
- Overhead guard rain cover
- Overhead guard
- Air inletting device
- Durable tread tyres
- Widen fork arm carrier
Product Advantages
- High pressure common rail environmental protection engine.
- High-quality manganese steel, strong toughness and high safety factor
- Integral forming overhead guard, strong and durable, large arched structure, high pressure resistance, strong safety
- Built-in noise isolating and sealing materials reduce vibration and noise effectively.
- Integrated injection molding instrument panel, humanized design.
- 80 opening angle of engine hood makes maintenance easier.
- The engine hood is easy to open.
- The gas spring with automatic lock function ensures the safety during maintenance.
- The truck has lower vibration and noise.
- smooth and precise walking and lifting control, excellent speed regulation performance.
- good matching performance of motor electronic control, regenerative braking, reverse braking, slope anti-slide and other functions, safe and reliable.
Small Electric Forklift Trucks Application
The electric forklift trucks are widely used in airports, stations, factories, workshops, warehouses freight yards, ports and distribution centers.
- Cold Storage Handling
- Enterprise Warehouse
- Logistics Transportation
- Airport
- Factory Workshop
- Station
Professional After-sales Services
- Affordable Factory Prices and Fast delivery
- Professional installation guidance and operation training
- With ISO & CE certificate, quality guaranteed
- OEM, ODM and customization services
- Comes with spare parts and toolbox
About Dogon Forklift
Dogon (China) Group is a large joint venture group company, which is integrating R&D, production, marketing and service. We have the rugged and reliable lift truck equipment to help you get your job done right. Our company has more than 500 employees, including more than 100 professional technicians , and more than 50 senior and intermediate engineers.
Dogon can supply different classes of forklifts, from small electric forklift to heavy duty diesel forklift available. Now our company mainly produces diesel forklifts, electric forklifts, non-road diesel engines, grass grabbers, loaders, agricultural machinery, etc. The K series 3 ton forklift and 3.5 ton forklift for sale are popular in the market. The 1 ton, 2 ton, and 3 ton electric forklift trucks are also our hot-sale products.
Our products have been exported to more than 20 countries, including Southeast Asia, the Middle East, Africa, and Latin America, etc. The forklift costs vary depending on the type of forklift and corresponding configuration you need. If you are interested in our products or want to select a right forklift for your job, get in touch with our team to learn more details and get a free quotation today.
