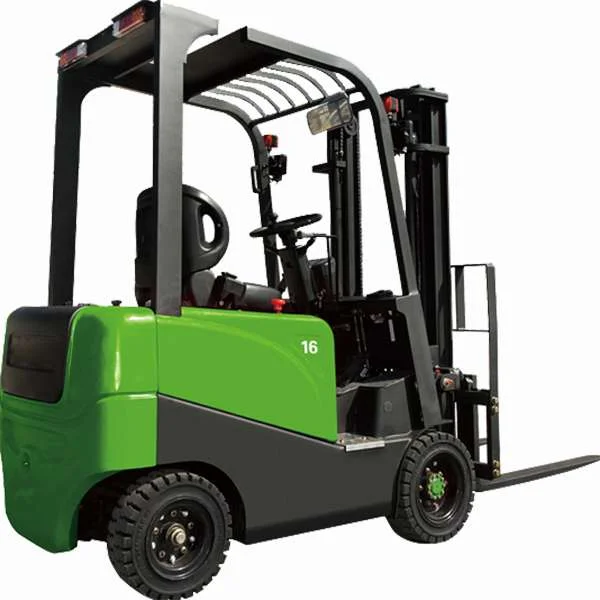

Electric Counterbalance Forklift 1.6 Ton for Sale

Short Description:

ModelCPD16
Rated Capacity (kg)1600
Load center distance (mm)500
Power modeBattery
Tyre typeSolid

Share:

Description

Dogon electric counterbalance forklift 1.6 ton for sale. The 1.6 ton electric forklift truck supplied by Dogon is light duty, safe and reliable. The counterbalanced electric lift trucks are carry out loading, stacking and horizontal transport functions in different working systems.

counterbalance electric forklift

Characteristics of Electric Counterbalance Forklift

  • Adopt excellent electric motor control, strong power and simple structure, and reduce energy consumption by 20%;
  • Select lithium iron phosphate battery, each unit has BMS management and protection device to ensure the use of lithium battery, high voltage design, increase power utilization efficiency;
  • The exposed parts are made of environmentally friendly overall stamped metal materials;
  • Intelligent sensing of descending buffer, when the fork is 100-60mm away from the ground, the descending speed will automatically slow down, so that the goods and pallets do not hit the ground;
  • The new large-screen LED instrument has good visibility, intuitive reading and friendly human-computer interaction interface;
  • Regenerative braking: when the forklift stops, decelerates, reverses direction and descends slopes, the drive motor becomes a generator, and the battery is reversely charged through the controller to save energy;
  • The full-view mast and fork frame ensure the operator a good operating field of vision.
  • High strength roof guard.
  • Optional: The battery is removed from the side, and the battery does not need to be lifted from the gap at the top of the roof guard. It is convenient and quick to replace the battery. It is suitable for heavy-duty, continuous work and other high-intensity conditions.
  • According to the ergonomically designed steering wheel, the inclination angle can be adjusted up and down, the seat can be adjusted forward and backward by 150mm at the same time, and the operator can choose a comfortable driving position.
  • The optional lithium battery is guaranteed for 5 years or 10,000 hours.

1.6 ton electric counterbalance forklift dimensions

ModelCPD16
Rated Capacity (kg)1600
Load center distance (mm)500
Power modeBattery
Tyre typeSolid
Max. Lifting height (mm)3000
Free lifting height (mm)40
Mast tilt angle front/rear4°/8°
Length (fork exclude, mm)1970
Width (mm)1100
Mast height (mm)1960
Overhead guard height (mm)2110
Min. Under clearance (mm)130
Wheel base (mm)1260
Min. Turning radius (mm)2100
Travelling speed loaded/unloaded (km/h)13/14
Lifting speed loaded/unloaded (mm/s)260/300
Gradeability loaded/unloaded (%)15

Motor & Battery

MotorDrive motor power (KW)5.5
Pump motor power (KW)4.0
BatteryVoltage (V)48
Lithium battery capacity (Ah)225
Lead-acid battery capacity (Ah)230

Note: Performance can be customized according to customer needs.

Electric Counterbalance Forklift Features

  1. Zero emission, no pollution
  2. Low noise, quiet and comfortable operation
  3. High efficiency and energy saving, ultra-low power consumption, long service life
  4. The vehicle is compact and simple in appearance

electric counterbalance forklift 1.6 ton for sale

About Dogon forklift

Dogon (China) group is a professional forklift manufacturer and supplier, with production bases and research and development centers. Our company has a professional R&D technical team with almost 20 years of experience. We are specialized in electric forklift (battery forklift), diesel forklift, scissor lift truck, articulating boom forklift, telehandler forklift, non-road diesel engines, grass grabbers, loaders, agricultural machinery, etc.

K series diesel lift trucks 3-10 ton are available. 3 ton forklift and 3.5 ton forklift for sale are popular in the market. Dogon can also provide electric forklift trucks, such as 1 ton forklift are widely used in warehouse.

We are an ISO9001-certified enterprise. And our products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture, and many other industries. We offer 24 hours online support, to ensure in-time communication. If you are interested in our electric forklift trucks and other types of forklift, get in touch with our team, learn more information and a free quotation today.
