Description
Get the best deals on internal combustion 7000 lb forklift from Dogon. We are offering 6000 lb-7000 lb diesel fork lift truck with superior quality, professional after-sales services and good price. Increase your productivity with Dogon reliable and adapted fork lift trucks. Our diesel 3.5 ton forklift trucks are equipped with China Anhui Quanchai engine high pressure common rail.
The fork lift trucks can handle heavy loads and operate on indoor surfaces or smooth outdoor surfaces. Th forklifts 7000lb are best suited for lifting and transporting crates, pallets, and other materials over short distances.

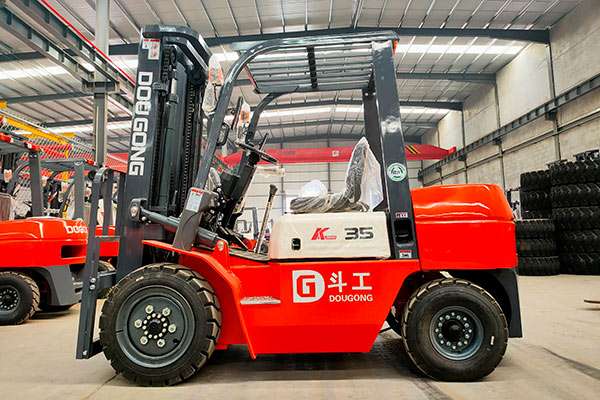

Dogon Diesel Forklift

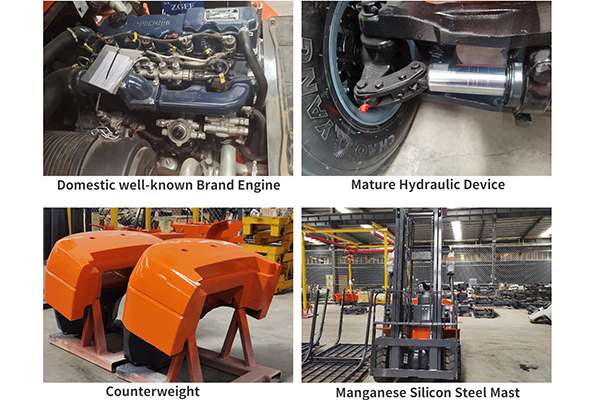

- Equipped with China powerful and reliable internal combustion engines, excellent environmental performance.
- With led work lights and warning lights.
- Adjustable seat and seat belt.
- Wide-view mast design, providing superior vision, making the operation more security.
- Built-in noise isolating and sealing materials reduce vibration and noise effectively.
- Transmission box, drive axle and other core parts are made china top brand, their box manufacturing and assembly equipment has best quality and reliable.
- 80 opening angle of engine hood makes maintenance easier.
- The gas spring with automatic lock function ensures the safety during maintenance.
- Environmental friendly, lower vibration and noise.
7000 lb forklift specs/dimensions
| Model | CPC35 | CPCD35 | |
| Power Type | Diesel | Diesel | |
| Rated Capacity | (kg) | 3500 | 3500 |
| Load Center | (mm) | 500 | 500 |
| Driving Mode | Sit-on Type | Sit-on Type | |
| Performance | |||
| Max Traveling Speeds(laden/unladen) | km/h | 18/19 | 18/19 |
| Lifting Speeds(laden/unladen) | mm/s | 440/480 | 440/480 |
| Lowering Speeds(laden/unladen) | mm/s | 440/430 | 440/430 |
| Max Draw-bar Pull(laden/unladen) | kN | 18.1/13.4 | 19.6/16.2 |
| Max Gradeability(laden/unladen) | % | 15/20 | 15/20 |
| Size | |||
| Max Lifting Height(mm) | H | 3000 | 3000 |
| Mast Height, Lowered(mm) | H1 | 2070 | 2070 |
| Mast Height, Extended(mm) | H2 | 4220 | 4220 |
| Free Lift(mm) | H3 | 30 | 30 |
| Overall Height(overhead guard, mm) | H4 | 2090 | 2090 |
| Min. Ground Clearance(mm) | H5 | 135 | 135 |
| Seat to Overhead Guard(mm) | H6 | 1000 | 1000 |
| Traction Coupling Height(mm) | H9 | 310 | 310 |
| Backrest Height(from the fork face, mm) | H13 | 1222 | 1222 |
| Overall Length(with/without fork, mm) | W1 | 3913/2693 | 3913/2693 |
| Wheel base(mm) | L4 | 1700 | 1700 |
| Front Overhang(mm) | L2 | 460 | 460 |
| Rear Overhang(mm) | L3 | 533 | 533 |
| Overall Width(mm) | W1 | 1225 | 1225 |
| Tread(front/rear)(mm) | W3/W2 | 1000/970 | 1000/970 |
| Distance Across Forks(max/min, mm) | W5 | 1060/244 | 1060/244 |
| Min. Turning Radius(external, mm) | r | 2390 | 2390 |
| Mast Tilt(deg) | a/b | 6/12 | 6/12 |
| Fork Size(mm) | L4 | 1220×122×45 | 1220×122×45 |
Fork Standard configuration
- Traction pin
- Backward buzzer
- Neutral gear safety switch
- Overhead guard rain cover
- Air inletting device
- Durable tread tyres
- Widen fork arm carrier
- Tool box
Optional Configuration
- Driver’s cab
- Speedometer
- Fire extinguisher
- Solid tyres
- Rear working lamp
- Auxiliary pipeline
- Suspension seat
- Custom color
- Transmission oil temperature gauge
- Warm air blower
- High air exhausting device
- Tilt cylinder jacket
- Smart fleet management system
Product features
- 20% reduction in vibration
- 3dB noise reduction
- 45% more workspace
- operator’s field of vision increased by 20%
- 20% increase in work efficiency
- Loading capacity increased by more than 5%
- Stability increased by 5%
- Reliability increased by 40%
- Opening angle of the hood increased to 80°
Dogon Forklift After-Sales Services
- Professional R&D team
- with ISO & CE certificate, quality guaranteed
- OEM, ODM and customization services are available
- Wide selection of forklift attachments
- Factory prices
- Fast delivery
- Professional technical support and safety training
About Dogon (China) Group
Dogon (China) Group is one of the most professional forklift manufacturers and suppliers in China. Dogon forklift provides wide range of high quality solutions for material handling equipment. K series 3-3.5 ton internal combustion counterbalance forklift truck is our star product pipeline.
In addition, the light-duty electric forklift are also popular in the market, such as 1 ton forklift and electric pallet stacker, etc.. The articulating boom lift, scissor lift truck, and telescopic handler forklift are also our hot-selling products.
With a strong lift capacity of up to 7000 lbs., this forklift is great for any business or workplace that needs to handle heavy materials. Lift Your Business To Success with Dogon Forklift. For product pricing, customization, or other inquiries, feel free to contact our sales team, and get a free quotation today.
