Description

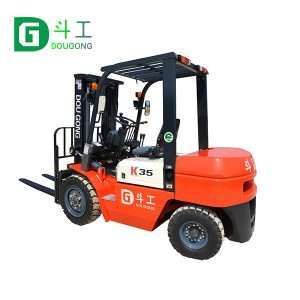

Diesel counterweight forklift truck is a common type of lift truck. 3 ton diesel forklift one of most popular models. The diesel forklift produced by Dogon is designed for high reliability and perfect performance. It uses the highest quality components to reduce maintenance costs and ensure operator comfort.
Product Description
- High pressure common rail environmental protection engine.
- Built-in noise isolating and sealing materials reduce vibration and noise effectively.
- 80 opening angle of engine hood makes maintenance easier.
- The engine hood is easy to open.
- The gas spring with automatic lock function ensures the safety during maintenance.
- The truck has lower vibration and noise.
3 ton diesel forklift dimensions
| Model | CPC30 | CPCD30 |
| Power Type | Diesel | |
| Rated Capacity(kg) | 3000 | |
| Load Center(mm) | 500 | |
| Driving Mode | Sit-on Type | |
| Performance | ||
| Max Traveing Speeds(laden/unladen) | 18/19 km/h | 19/19 km/h |
| Lifting Speeds(laden/unladen) | 455/480 mm/s | 455/480 mm/s |
| Lowering Speeds(laden/unladen) | 450/500 mm/s | 450/500 mm/s |
| Max Draw-bar Pull(laden/unladen) | 17.5/13.4 kN | 19.5/15.5 kN |
| Max Gradeability(laden/unladen) | 15%/20% | 21%/20% |
| Size | ||
| Max Lifting Height(mm) | 3000 | 3000 |
| Mast Height, Lowered(mm) | 2070 | 2070 |
| Mast Height, Extended(mm) | 4250 | 4250 |
| Free Lift(mm) | 160 | 160 |
| Overall Height(overhead guard, mm) | 2095 | 2095 |
| Min. Ground Clearance(mm) | 1350 | 1350 |
| Seat to Overhead Guard(mm) | 1000 | 1000 |
| Traction Coupling Height(mm) | 310 | 310 |
| Backrest Height(from the fork face, mm) | 1227 | 1227 |
| Overall Length(with/without fork, mm) | 3750/2680 | 3750/2680 |
| Wheel base(mm) | 1700 | 1700 |
| Front Overhang(mm) | 470 | 470 |
| Rear Overhang(mm) | 510 | 510 |
| Overall Width(mm) | 1225 | 1225 |
| Tread(front/rear)(mm) | 1000/970 | 1000/970 |
| Distance Across Forks(max/min, mm) | 1060/250 | 1060/250 |
| Min. Turning Radius(external, mm) | 2400 | 2400 |
| Min. Turning Radius(internal, mm) | 200 | 200 |
| Min. Right Angle Aisle Width(mm) | 2380 | 2380 |
| Mast Tilt(deg) | 6/12 | 6/12 |
| Fork Size(mm) | 1070×125×45 | 1070×125×45 |
Standard configuration
- Fork
- Traction pin
- Backward buzzer
- Neutral gear safety switch
- Overhead guard rain cover
- Overhead guard
- Air inletting device
- Durable tread tyres
- Widen fork arm carrier
Optional Configuration
- Driver’s cab
- Speedometer
- Fire extinguisher
- Solid tyre
- Rear working lamp
- Auxiliary pipeline
- Suspension seat
- Customer make color
- Transmission oil temperature gauge
- Warm air blower
- High air exhausting device
- Tilt cylinder jacket
- Smart fleet management system
Product features
- 20% reduction in vibration
- 3dB noise reduction
- 45% more workspace
- operator’s field of vision increased by 20%
- 20% increase in work efficiency
- Loading capacity increased by more than 5%
- Stability increased by 5%
- Reliability increased by 40%
- Opening angle of the hood increased to 80°
Available Attachment
- String rod
- Lifting hook
- Side shifter
- Paper roll clamp
- Rotating fork
- Cargo boom
- Lengthening fork
- Multipurpose drum clamp
- Rotating flat clamp
- Widen fork arm carrier
- Lengthening fork extension
- Load stabilizer
- Load push pull
- Tipping fork, tipping bucket
- Wide view free-lift mast(two-stage)
- Wide view free-lift mast(three-stage)
About Dogon Forklift
Dogon Group is a dedicated forklift maker in China. Our company has more than 500 employees, including more than 100 professional technicians, and more than 50 senior and intermediate engineers.
Dogon forklifts are very popular with its high performance, comfortable operation, excellent quality, and reliable working. Our company will continuously keep its advantages with strict QC systems.
Now our company mainly produces diesel forklifts, electric forklifts, non-road diesel engines, grass grabbers, loaders, agricultural machinery, etc. All the forklift trucks can be supplied with necessary attachments for different material handling applications.
