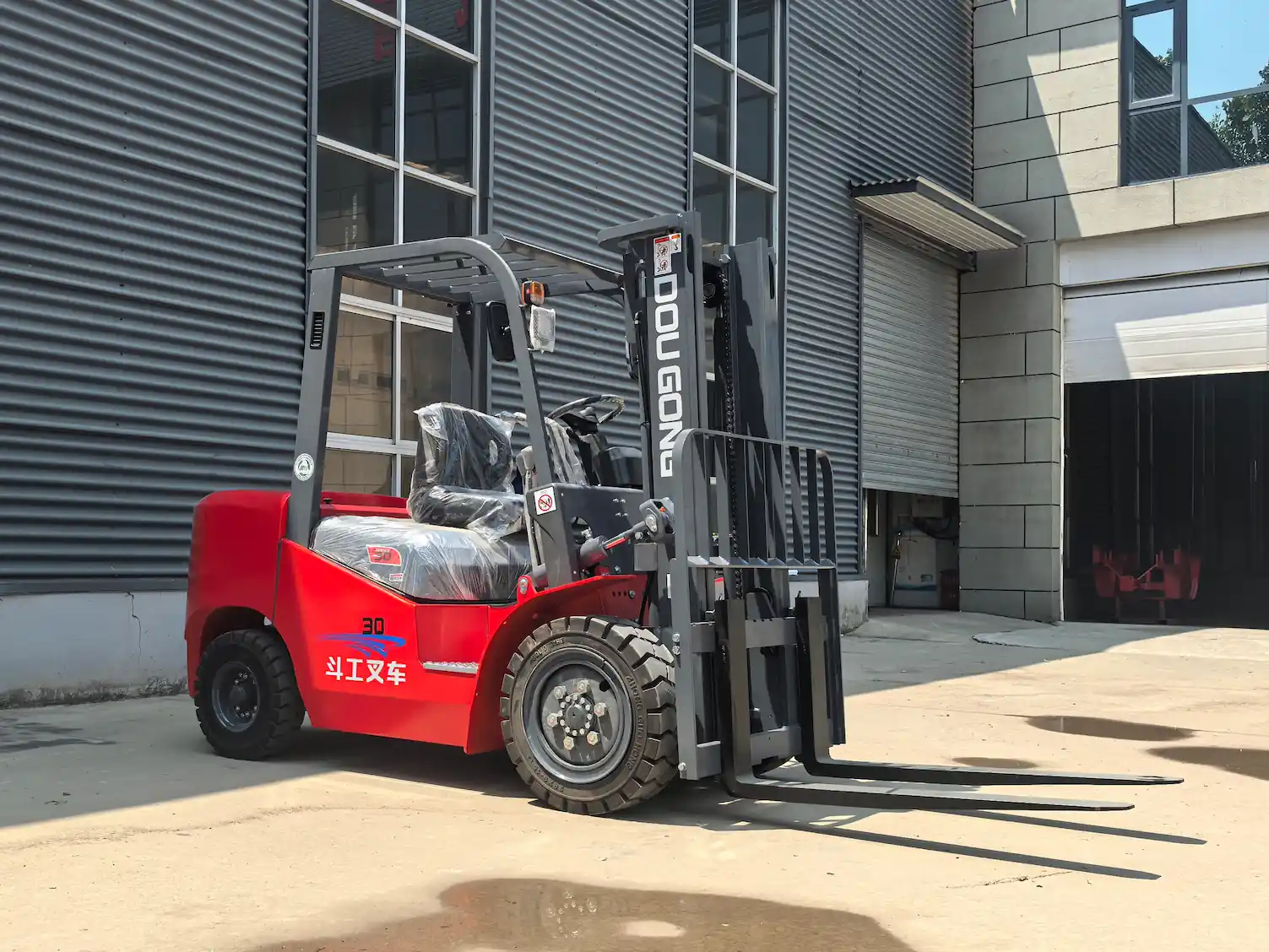

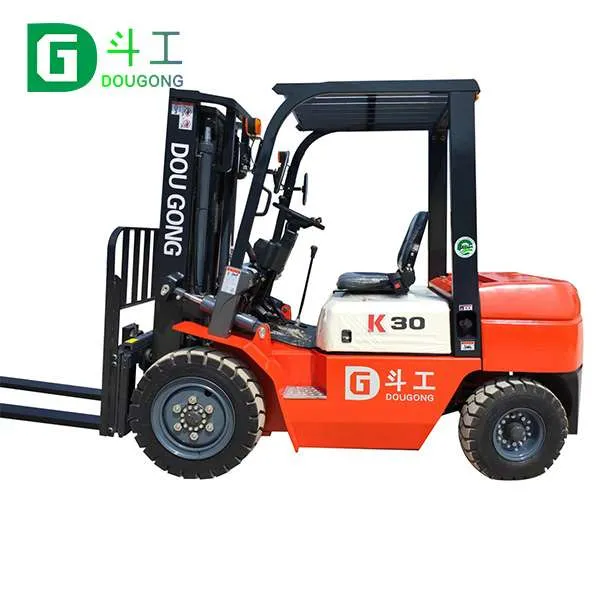

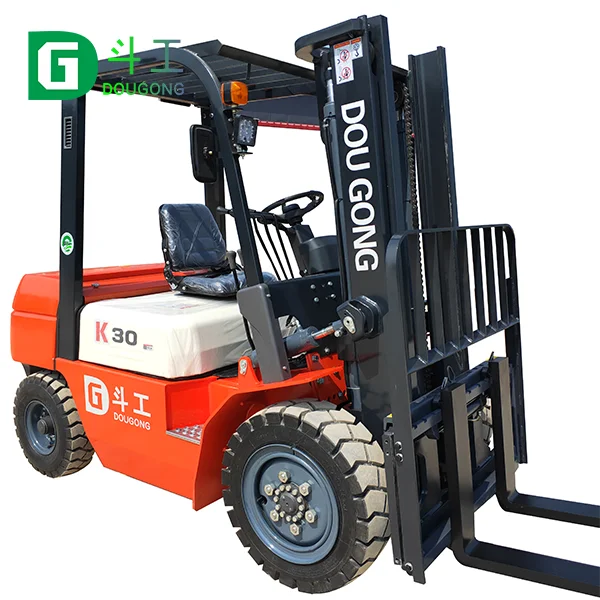

Manual transmission forklift diesel 3 ton

Short Description:

Product: Manual transmission diesel fork lift

Rated Capacity: 3 ton/3000 kg

Lifting Height: 3000 mm

Diesel Tank Capacity: 50 L

Transmission Type: Manual

Weight: 4230 kg

For forklift 3 ton price, dimensions, customization, product catalog or other inquiries, feel free to contact our sales team.



Dogon manual transmission forklift diesel 3 ton is an ideal outdoor materials handling equipment. It’s greatly improves the work efficiency with strong power and excellent performance of the manual transmission forklift truck.

Manual Transmission Forklift Description

  • High pressure common rail environmental protection engine.
  • Noise isolating and sealing materials reduce vibration and noise effectively.
  • 80 opening angle of engine hood makes maintenance easier.
  • The engine hood is easy to open.
  • The gas spring with automatic lock function ensures the safety during maintenance.
  • The truck has lower vibration and noise.

manual transmission forklift

3 Ton Diesel Forklift Specifications

Power TypeDieselDiesel
Rated Capacity(kg)30003000
Load Center(mm)500500
Driving ModeSit-on TypeSit-on Type
Max Traveling Speeds(laden/unladen)km/h18/1918/19
Lifting Speeds(laden/unladen)mm/s440/480440/480
Lowering Speeds(laden/unladen)mm/s440/430440/430
Max Draw-bar Pull(laden/unladen)kN17.5/13.419.5/15.5
Max Gradeability(laden/unladen)%15/2015/20
Max Lifting Height(mm)H30003000
Mast Height, Lowered(mm)H120702070
Mast Height, Extended(mm)H242204220
Free Lift(mm)H33030
Overall Height(overhead guard, mm)H420902090
Min. Ground Clearance(mm)H5135135
Seat to Overhead Guard(mm)H610001000
Traction Coupling Height(mm)H9310310
Backrest Height(from the fork face, mm)H1312151215
Overall Length(with/without fork, mm)W13913/26933913/2693
Wheel base(mm)L417001700
Front Overhang(mm)L2460460
Rear Overhang(mm)L3533533
Overall Width(mm)W112251225
Distance Across Forks(max/min, mm)W51060/2441060/244
Min. Turning Radius(external, mm)r23902390
Mast Tilta/b6°/12°6°/12°
Fork Size(mm)L41220×122×451220×122×45

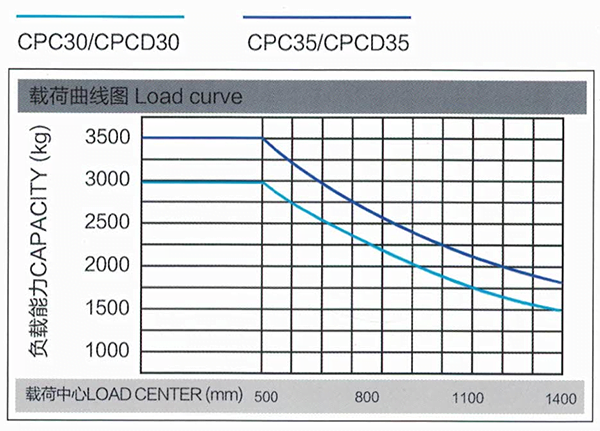

Forklift 3 ton load chart

forklift load chart

Product features

  • 20% reduction in vibration
  • 3dB noise reduction
  • 45% more workspace
  • operator’s field of vision increased by 20%
  • 20% increase in work efficiency
  • Loading capacity increased by more than 5%
  • Stability increased by 5%
  • Reliability increased by 40%
  • Opening angle of the hood increased to 80°

Available Attachment

  • String rod
  • Lifting hook
  • Side shifter
  • Paper roll clamp
  • Rotating fork
  • Cargo boom
  • Lengthening fork
  • Multipurpose drum clamp
  • Rotating flat clamp
  • Widen fork arm carrier
  • Lengthening fork extension
  • Load stabilizer
  • Load push pull
  • Tipping fork, tipping bucket
  • Wide view free-lift mast(two-stage)
  • Wide view free-lift mast(three-stage)

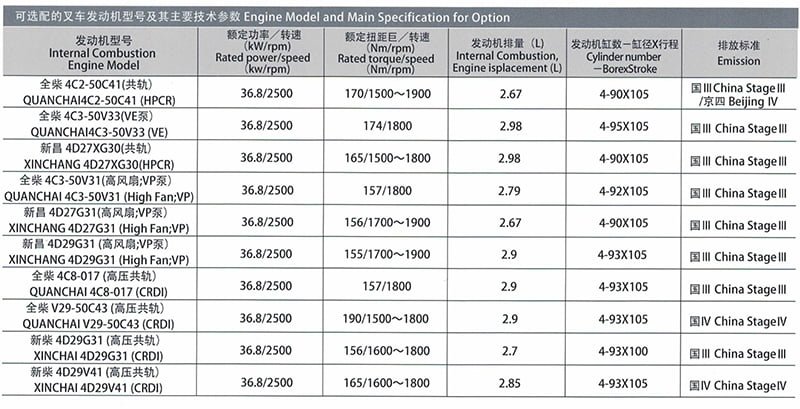

Optional forklift engine models & specifications

forklift engine model

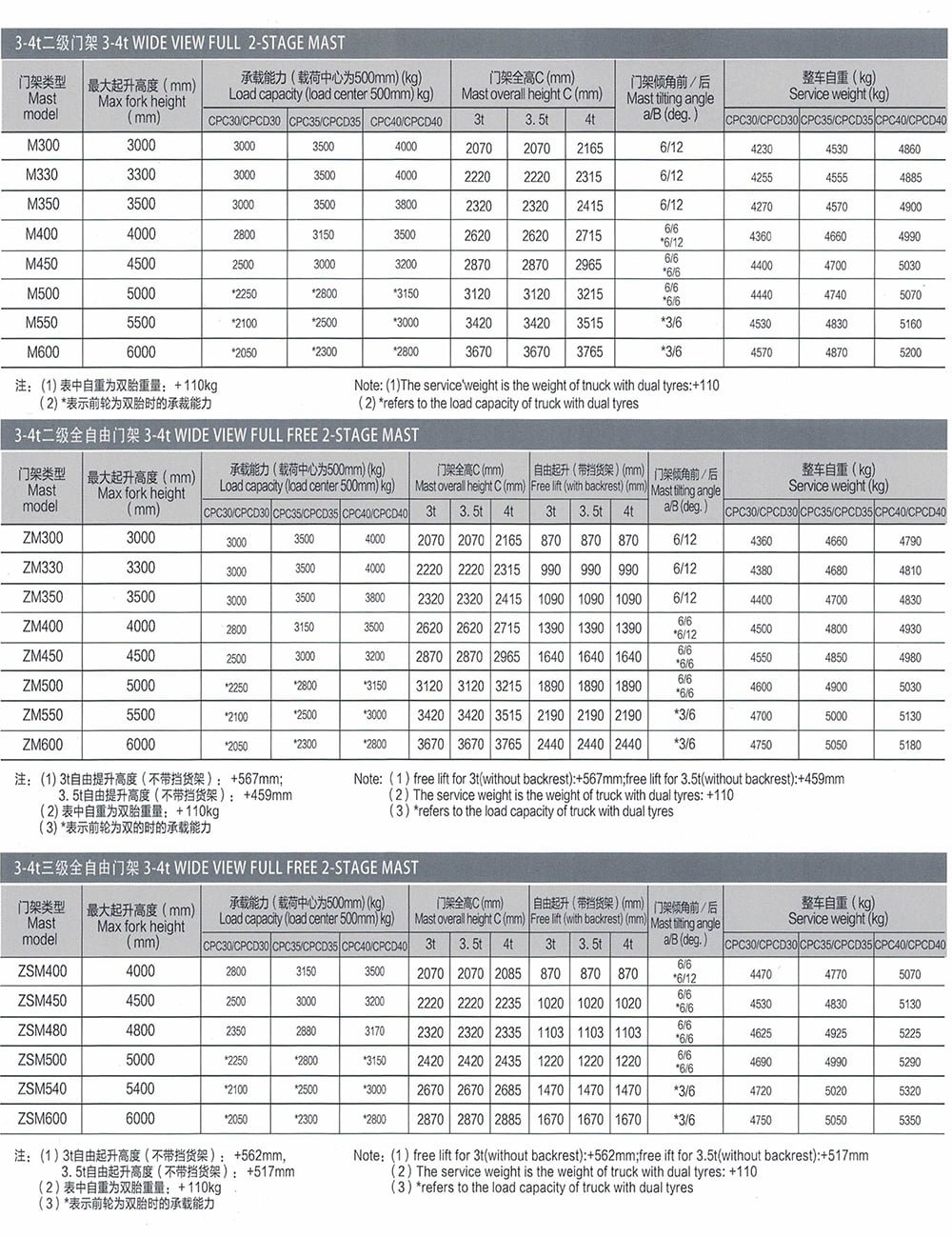

Optional forklift mast dimensions

Why choose Dogon Forklift

* Free Quotes

* Fast delivery

* Available In-Stock

* Affordable Prices

* Have many years of production or foreign trade experience

* Participated in many well-known exhibitions in the industry

* Has its own R&D team

* With ISO & CE certificates, quality guaranteed

* Provide OEM and personalized customization services, etc.

Manual transmission forklift

About Dogon Forklift

Dogon (China) Group is a dedicated forklift manufacturer and exporter in China. Our company has more than 500 employees, including more than 100 professional technicians, and more than 50 senior and intermediate engineers. Our company will continuously keep product advantages with strict QC systems.

Manual transmission forklift 3 ton

Dogon K series diesel stick shift forklift product pipeline mainly include 3ton forklift, 3.5 ton fork lift truck, 4 ton forklift, 5 ton forklift and 10 ton forklift. Dogon diesel lift truck is very popular with strong performance, comfortable operation, excellent quality, and reliable working.

Now our mainly produces diesel forklifts, electric forklifts, telescopic handler forklift, scissor lift truck, articulating boom forklift, electric pallet stacker, non-road diesel engines, grass grabbers, loaders, agricultural machinery, etc.

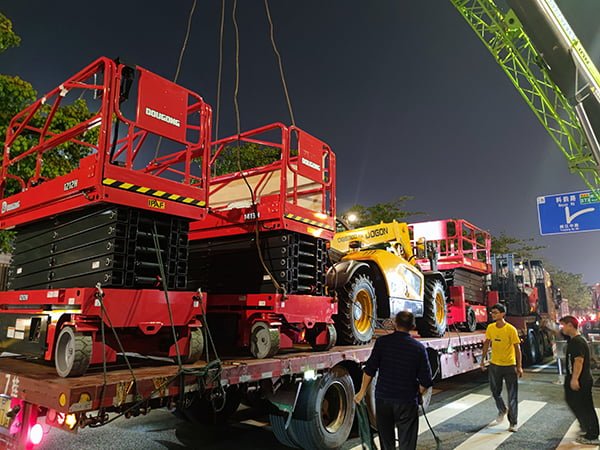

Dogon lift trucks for sale


All the forklift trucks can be supplied with necessary attachments for different material handling applications. If you are interested in our lift trucks, feel free to contact our team, get more details and a free quotation.
