Description
Automatic Transmission Forklift Trucks
Reliable special instrument
The instrument and steering column are integrated, with reasonable structure and better view. The instrument has water temperature gauge, oil gauge, hour meter and other alarm indicators, so that the working conditions are under control. When the engine has fault, the indicator will be on all the time

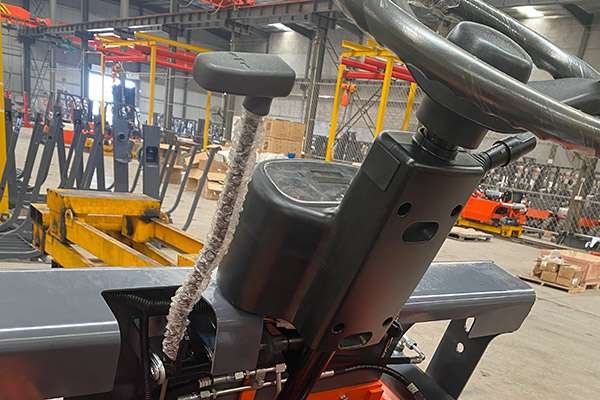

Adjustable wheel system
With the patented technology of the new steering wheel double thread adjustment mechanism, improve the operation comfort and reliability of the adjustment, in line with the ergonomic design, so that driving more comfortable, convenient.

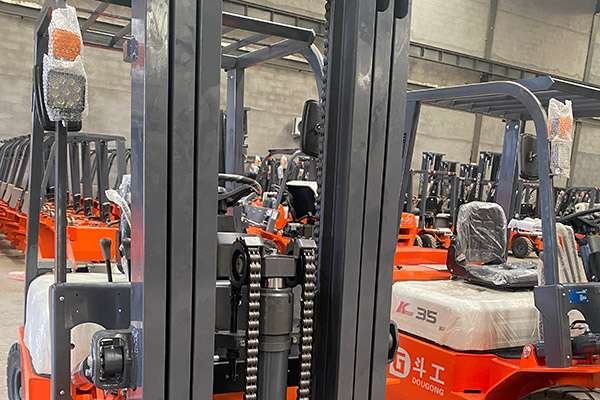

Wide view mast
Patented channel steel has first rated quality. Enlarged channel surface make structure firmer. The wide view mast is the standard configuration of the truck. It has better view.

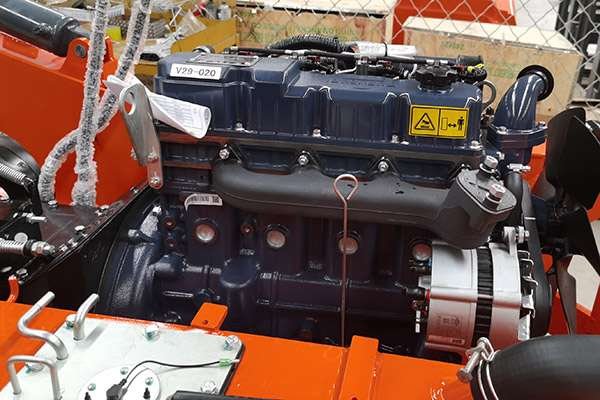

Environment-friendly design and easy maintenance
High pressure common rail environmental protection engine. Built-in noise isolating and sealing materials reduce vibration and noise effectively. 80 opening angle of engine hood makes maintenance easier. The engine hood is easy to open. The gas spring with automatic lock function ensures the safety during maintenance. The truck has lower vibration and noise.
High strength 20 MN-silicon steel door frame
High strength 20 manganese silicon steel door frame. With high tensile strength and enough toughness. Good weld ability and form ability, all for mold hydraulic forming.
3.5 Ton Diesel Automatic Forklift specifications
| Model | CPC35 | CPCD35 |
| Power Type | Diesel | Diesel |
| Rated Capacity(kg) | 3500 | 3500 |
| Load Center(mm) | 500 | 500 |
| Driving Mode | Sit-on Type | Sit-on Type |
| Performance | ||
| Max Traveing Speeds(laden/unladen) | 18/19 km/h | 18/19 km/h |
| Lifting Speeds(laden/unladen) | 440/480 mm/s | 440/480 mm/s |
| Lowering Speeds(laden/unladen) | 440/430 mm/s | 440/430 mm/s |
| Max Draw-bar Pull(laden/unladen) | 18.1/13.4 kN | 19.6/16.2 kN |
| Max Gradeability(laden/unladen) | 15%/20% | 15%/20% |
| Size | ||
| Max Lifting Height(mm) | 3000 | 3000 |
| Mast Height, Lowered(mm) | 2070 | 2070 |
| Mast Height, Extended(mm) | 4220 | 4220 |
| Free Lift(mm) | 30 | 30 |
| Overall Height(overhead guard, mm) | 2090 | 2090 |
| Min. Ground Clearance(mm) | 135 | 135 |
| Seat to Overhead Guard(mm) | 1000 | 1000 |
| Traction Coupling Height(mm) | 310 | 310 |
| Backrest Height(from the fork face, mm) | 1222 | 1222 |
| Overall Length(with/without fork, mm) | 3913/2693 | 3913/2693 |
| Wheel base(mm) | 1700 | 1700 |
| Front Overhang(mm) | 460 | 460 |
| Rear Overhang(mm) | 533 | 533 |
| Overall Width(mm) | 1225 | 1225 |
| Tread(front/rear)(mm) | 1000/970 | 1000/970 |
| Distance Across Forks(max/min, mm) | 1060/244 | 1060/244 |
| Min. Turning Radius(external, mm) | 2390 | 2390 |
| Mast Tilt(deg) | 6/12 | 6/12 |
| Fork Size(mm) | 1220×122×45 | 1220×122×45 |
Optional engine models and configurations
Standard configuration
- Fork
- Traction pin
- Backward buzzer
- Neutral gear safety switch
- Overhead guard rain cover
- Overhead guard
- Air inletting device
- Durable tread tyres
- Widen fork arm carrier
- Tool Box
Optional Configuration
- Driver’s cab
- Speedometer
- Fire extinguisher
- Solid tyres
- Rear working lamp
- Auxiliary pipeline
- Suspension seat
- Customer make color
- Transmission oil temperature gauge
- Warm air blower
- High air exhausting device
- Tilt cylinder jacket
- Smart fleet management system
Available Attachment
- String rod
- Lifting hook
- Side shifter
- Paper roll clamp
- Rotating fork
- Cargo boom
- Lengthening fork
- Multipurpose drum clamp
- Rotating flat clamp
- Widen fork arm carrier
- Lengthening fork extension
- Load stabilizer
- Load push pull
- Tipping fork, tipping bucket
- Wide view free-lift mast(two-stage/three-stage)
Why choose Dogon Forklift
* Free Quotes and free catalog
* Fast delivery and Affordable Wholesale Prices
* Rich experience in international trade
* Professional R&D team
* With ISO & CE certificate, quality guaranteed
* Provide OEM and personalized customization services
About Dogon Forklift
Dogon (China) Group is a dedicated forklift manufacturer in China. Our company has more than 500 employees, including more than 100 professional technicians, and more than 50 senior and intermediate engineers. Dogon forklift trucks are very popular with high performance, comfortable operation, excellent quality, and reliable working. Our company will continuously keep product advantages with strict QC systems.
Dogon K series diesel forklift trucks mainly include 3ton forklift and 3.5 ton fork lift truck. In additional, electric forklift and electric pallet stacker are also our hot-sale products in the market. Now our mainly produces diesel forklifts, electric forklifts, non-road diesel engines, grass grabbers, loaders, agricultural machinery, etc. All the forklift trucks can be supplied with necessary attachments for different material handling applications. If you are interested in our products, feel free to contact our team, get more details and a free quotation.
